Barmesa Submersible Sludge Pump 15 Hp, 3 Phases, 6" Discharge, 6KMUD1503

Brand: Barmesa

Model: 6KMUD1503

Three-phase Barmesa brand submersible pump with a power of 15 horsepower. It is mainly used to pump water with high content of abrasive sludge, such as mineral coal and bentonite.

The impeller and pump cover are made of high chromium steel, which allows these parts to be very resistant to wear, the internal design of the pump allows it to operate continuously even when partially submerged.

They also have a high nickel chrome agitator that facilitates the pumping of muddy water with abrasive material. They are used in constructions, open mines, treatment plants, among others.

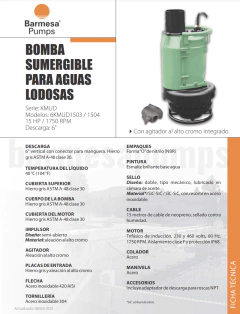

Data sheet

Motor Type: Electric, three-phase induction

Motor Power: 15 HP

Engine RPM: 1750 RPM

Voltage: 230V

Motor phases: Three-phase

Thermal protection: Yes, class F insulation and IP68 protection

Bomb

Maximum flow: 3709 LPM

Maximum height: 22 m

Discharge: 6″

Impeller type: Semi-open

Body Material: ASTM A-48 Class 30 Gray Iron

Impeller material: high chromium alloy

Additional characteristics

Weight: 197kg
